Mobile App: Entering Bin Checks

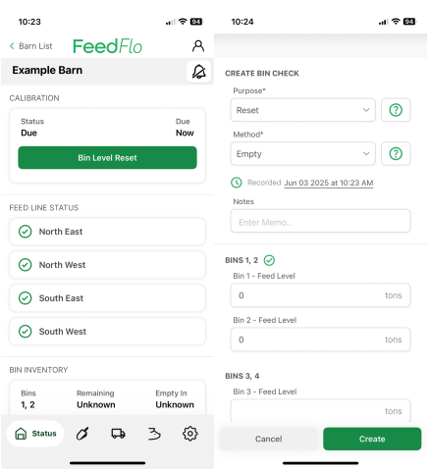

When needed, the Status Screen of your barn will show a Calibration card at the top of the screen, prompting you to perform a Bin Check.

1. Tap on the green button (may say “Bin Level Reset” or “Bin Level Calibration”)
2. Select the Method
   a. Click the green ? button for more information if you are unsure
3. If you’re entering a Bin Check from earlier, click on the date/time and update it
4. Enter the estimated levels for all the bins connected to the sensors you are calibrating
   e.g. bins 1 and 2 in the screenshot belong to the same tandem so you would enter values for both
5. Tap Create

Once you enter Bin Checks for all bins being monitored by FeedFlo, the card disappears.

‍

‍

‍

Website: Entering Bin Checks

1. Navigate to your barn’s Calibrations tab

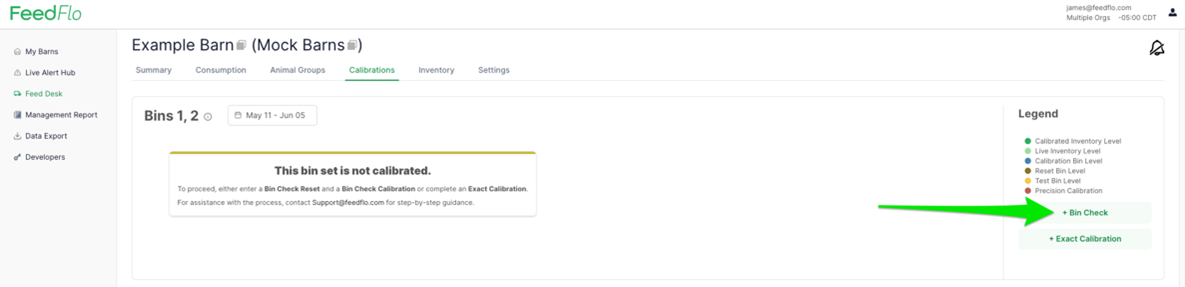

2. Click the + Bin Check button on the right-hand side of the page

1. Select the Purpose
   (See the "Purposes" section below for details)
2. Select the Date and Time you checked the bin(s)
   Be as accurate as you can within reason. Add notes if needed
3. Select the Method
   (See the "Methods" section below for details)
4. Input the estimated bin levels for all the bins
5. If needed, fill out the Notes with any additional information for yourself, coworkers, or FeedFlo
   a. When selecting “Other” as the method, please explain what you did in the Notes section
6. Click Create to save the Bin Check

‍

‍

The system will now process the Bin Check. You can click on the Bin Check in the chart and view the status.

 After the system processes the Bin Check, it updates the dark green line(calibrated inventory level) and will change the status to “Calibrated”.

‍

‍

‍

Explanation of Terms

Methods:

• Bang Check — Tap along the side of the bin moving upwards with a stick or pole, listening for a sound change.
• Bin Climb — Climb and visually inspect the bin.
• Empty — Use when the bin is completely empty.
• Overfill — Use when a delivery overfills the bin.
• Other — Any other technique. Please explain in notes.

Purposes:

• Calibrate — Regular Bin Check. Used for calibration.
• Reset — For initial Bin Checks or after a sensor issue.
• Test — Will not impact calibration. For internal review.

‍
